The Rubber Track Remote Control (RC) Stair-Climbing Robot Chassis is a robust, versatile, and high-performance platform designed for heavy-duty tasks across challenging terrains. With a loading capacity of up to 1200kg, this chassis is engineered for industries such as environmental monitoring, transportation, robotic arm carriers, and lifting platforms. In this article, we’ll explore its specifications, features, applications, how to use it, what’s included in the box, and answer frequently asked questions.
Specifications
The chassis is packed with advanced engineering and thoughtful design to ensure durability, efficiency, and adaptability. Below are its key specifications:
| Feature | Specification |
|---|---|
| Dimensions | 2000 x 1300 x 760 mm |
| Inner Battery Space | 900 x 760 x 500 mm |
| Self Weight | 450 kg (excluding battery) |
| Speed | 2.5–12 km/h (customizable up to 60 km/h) |
| Driving Wheel Diameter | 260 mm |
| Designed Load | 500–1200 kg |
| Track Width | 230 mm |
| Gear Ratio | 1:2.5 to 1:60 |
| Motor | Dual motors (3KW–11KW each) |
| Climbing Ability | ≤30° (capable of stair climbing) |
| Rated Motor Speed | 1500–3000 r/min |
| Maximum Span | 1520 mm |
| Ground Clearance | 200 mm |
| Obstacle Crossing Ability | 380 mm |
| Shock Absorption System | Matilda suspension with Christie shock absorption |
| Waterproof Rating | IP65 |
Key Features
The RC stair-climbing robot chassis is designed with cutting-edge technology and practical features:
- Parallelogram Track Structure: The unique parallelogram design ensures high ground clearance, excellent obstacle-crossing ability, and superior stair-climbing performance. The tracks wrap around the vehicle body, shielding it from damage and enabling operation on diverse terrains.

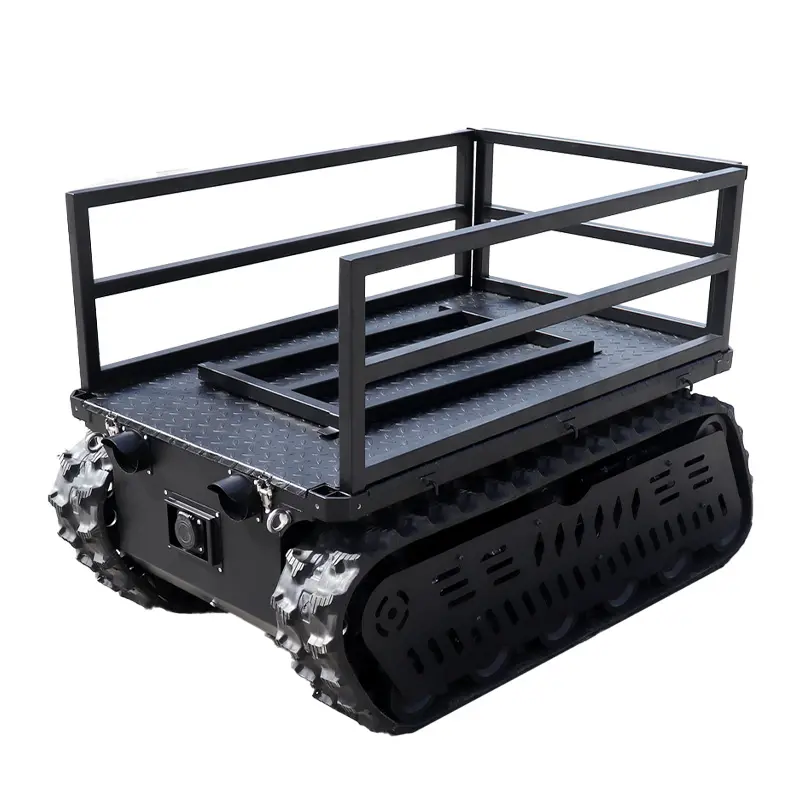

- Heavy-Duty Load Capacity: With a flat top plate, the chassis can carry loads from 500 to 1200 kg, and it can be equipped with guardrails for use as a transportation vehicle.

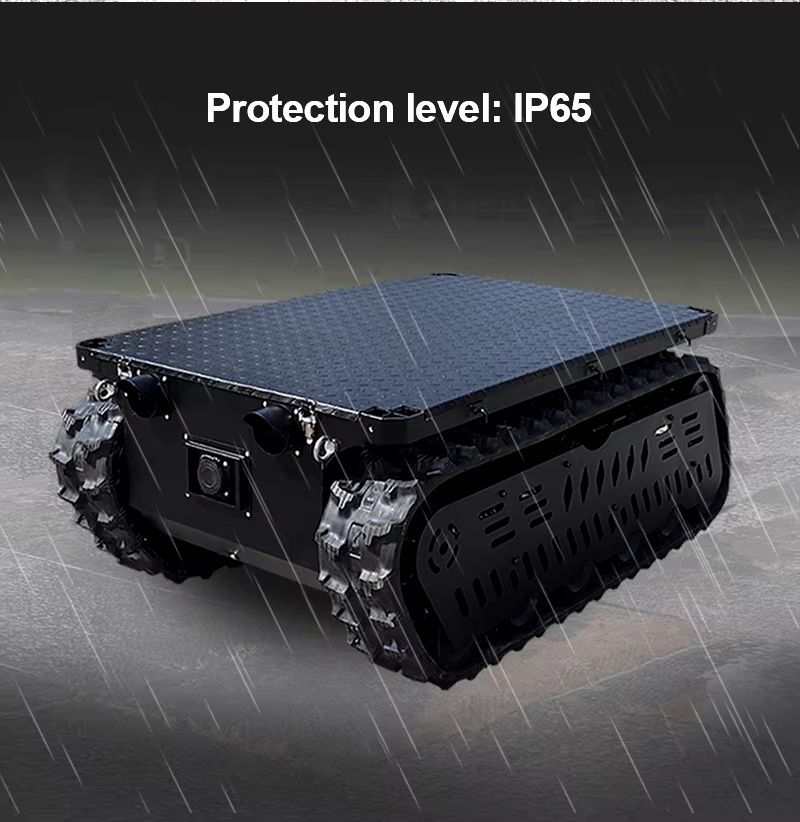

- IP65 Waterproofing: The chassis is dust-tight and protected against water jets, making it suitable for outdoor and rugged environments.
- Advanced Communication: Supports 485 communication and CAN protocol for seamless integration with other systems.

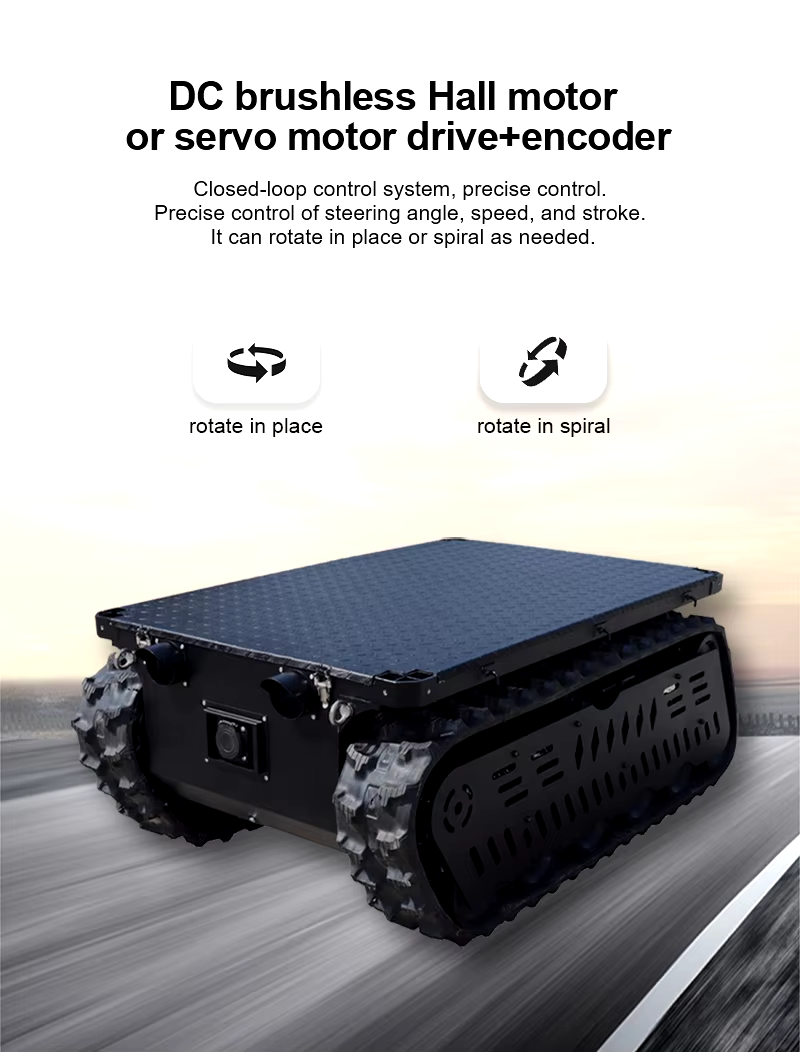

- Precise Control: Equipped with DC brushless Hall motors or servo motors with encoders, the chassis offers closed-loop control for precise steering, speed, and stroke. It can rotate in place or spiral as needed.
- Robust Driver Protection: Features overvoltage, overcurrent, undervoltage, overheating, and short-circuit protection for reliable operation.
- Multiple Control Options: Control via joystick, standard aircraft-model remote control, or upper computer command control. The system includes speed, displacement, and differential loops for precise speed regulation.
- High-Adhesion Rubber Tracks: The long track grounding area ensures excellent grip and stability on various surfaces.
- Adjustable Tensioning Wheel: Maintains optimal track tension for smooth operation.
- Lithium Iron Phosphate Battery: Offers high energy density, long cycle life, low self-discharge, and no memory effect for dependable power.

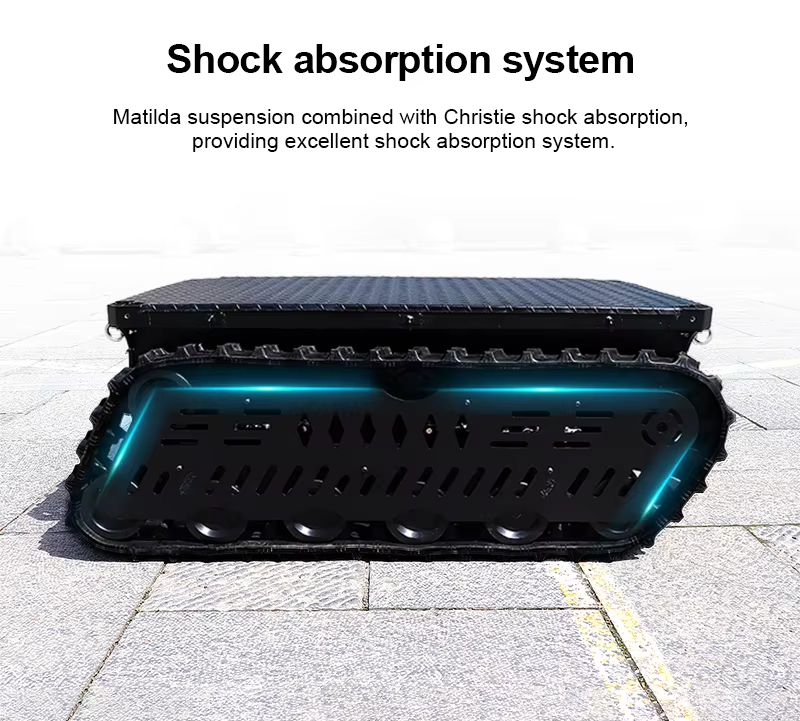

- Superior Shock Absorption: Combines Matilda suspension with Christie shock absorption for a smooth ride over rough terrain.
- Night Operation: High and low beam switching enables safe operation in low-light conditions.
- Customizable: Supports customization and secondary development to meet specific project needs.
Applications and Future Potential
The RC stair-climbing robot chassis is a game-changer in industries requiring robust, all-terrain mobility. Its applications include:
- Environmental Monitoring: Used for inspection and data collection in challenging or remote areas.
- Robotic Arm Carriers: Serves as a stable base for robotic arms in construction, manufacturing, or research.
- Lifting Platforms: Ideal for lifting heavy loads in warehouses or construction sites.
- Transportation: With guardrails, it can function as a heavy-duty transport vehicle for goods or equipment.
Future Potential
As automation and robotics advance, this chassis is well-positioned for integration with AI-driven systems, advanced sensors, and IoT connectivity. Its customizable design allows developers to adapt it for emerging technologies, such as autonomous navigation or drone-assisted operations. The chassis’s ability to handle extreme conditions makes it a candidate for disaster response, exploration missions, and industrial automation.
How to Use the RC Stair-Climbing Robot Chassis
Using the chassis is straightforward, thanks to its versatile control options and robust design. Follow these steps:
- Setup:
- Ensure the lithium iron phosphate battery is fully charged and securely installed in the 900 x 760 x 500 mm battery compartment.
- Check the track tension using the adjustable tensioning wheel.
- Verify that the chassis is free of debris and the tracks are aligned.
- Control Options:
- Joystick: Use the joystick for intuitive, hands-on control, ideal for precise movements.
- Remote Control: Operate the chassis using the aircraft-model remote control for long-range operation.
- Upper Computer Command: Connect to a computer for programmatic control, suitable for automation or complex tasks.
- Operation:
- Power on the chassis and select the desired control mode.
- Adjust speed (2.5–12 km/h) based on terrain and load requirements.
- Navigate stairs or obstacles, leveraging the chassis’s 30° climbing ability and 380 mm obstacle-crossing capacity.
- Use high/low beam lights for night operations.
- Maintenance:
- Regularly inspect the rubber tracks for wear and tear.
- Clean the chassis to maintain its IP65 waterproof rating.
- Monitor battery health and recharge as needed.
What’s in the Box?
When you purchase the RC stair-climbing robot chassis, you’ll receive:
- Chassis Unit: Fully assembled with rubber tracks, dual motors, and shock absorption system.
- Control Accessories:
- Joystick controller
- Aircraft-model remote control
- Battery Compartment: Space for a lithium iron phosphate battery (battery not included unless specified).
- User Manual: Detailed instructions for setup, operation, and maintenance.
- Optional Add-Ons (depending on supplier):
- Guardrails for transportation use
- Customizable modules for secondary development
Note: Always confirm with the supplier for exact contents, as packages may vary.
Frequently Asked Questions (FAQ)
Q: What is the maximum load capacity of the chassis?
A: The chassis can handle loads from 500 to 1200 kg, depending on configuration.
Q: Can it operate in wet or dusty environments?
A: Yes, the chassis has an IP65 rating, making it dust-tight and resistant to water jets.
Q: How long does the battery last?
A: Battery life depends on the load, speed, and terrain. The lithium iron phosphate battery offers high energy density and long cycle life, but specific runtimes vary. Consult the supplier for details.
Q: Can I customize the chassis for my project?
A: Absolutely! The chassis supports customization and secondary development, making it adaptable for various applications.
Q: Is the chassis suitable for autonomous operation?
A: While the chassis comes with manual and remote control options, its communication protocols (485 and CAN) and precise control systems make it compatible with autonomous systems when paired with appropriate software and sensors.
Q: How does it handle stairs?
A: The parallelogram track design and ≤30° climbing ability allow the chassis to navigate stairs and steep inclines with ease.
Q: Where can I purchase this chassis?
A: Check with robotics suppliers or manufacturers specializing in heavy-duty chassis. Online platforms like Alibaba or specialized robotics retailers may carry similar models.
Conclusion
The Rubber Track RC Stair-Climbing Robot Chassis is a versatile, high-performance platform that excels in demanding environments. With its robust design, advanced control systems, and customizable features, it’s an ideal choice for industries ranging from environmental monitoring to heavy-duty transportation. Whether you’re navigating stairs, crossing obstacles, or transporting heavy loads, this chassis delivers unmatched reliability and adaptability.
Ready to explore its potential? Contact a supplier today to learn more about customization options and pricing, and take your project to the next level with this cutting-edge robotic platform.
