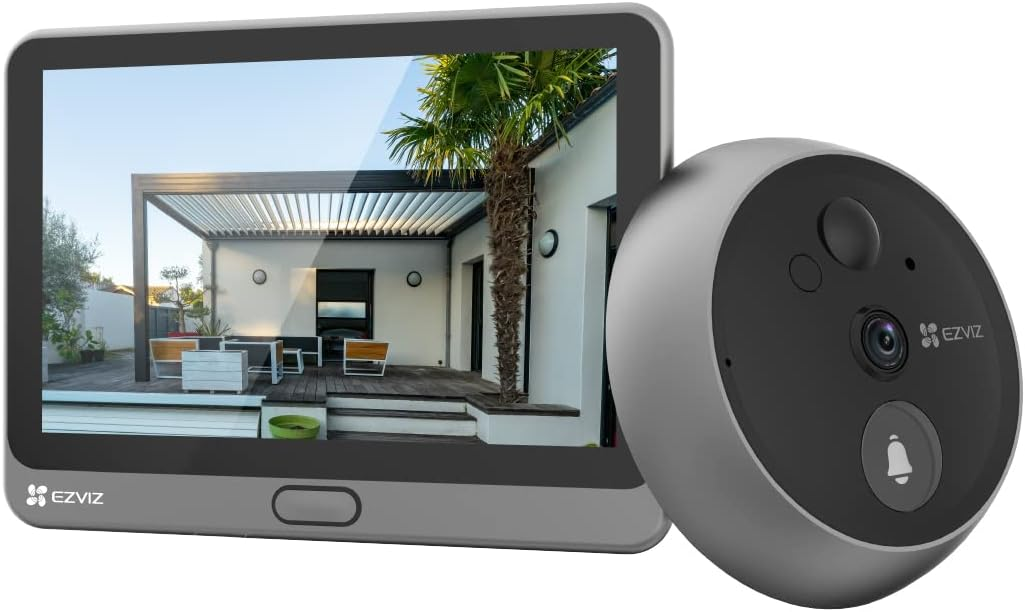

The EZVIZ Smart Peephole Doorbell Camera (CP4) is a versatile, wire-free home security solution that combines the functionality of a peephole camera and a doorbell. With a 4.3-inch color touch screen, 166° wide-angle view, and a 3-month battery life, this device is designed to enhance your home’s safety and convenience. In this article, we’ll explore its specifications, features, setup process, what’s included in the box, and answer common questions to help you decide if the CP4 is right for you.
Specifications
Here are the technical details of the EZVIZ CP4 Peephole Doorbell Camera, presented in a sleek, Amazon-inspired table:
| Feature | Details |
|---|---|
| Model | CS-CP4-R100-6E2WPFBS |
| Dimensions | 11.55 x 8.55 x 2.45 cm |
| Weight | 320 g |
| Material | High-endurance zinc alloy |
| Wireless Communication | Wi-Fi (2.4 GHz only) |
| Resolution | 1080p Full HD |
| Field of View | 166° ultra-wide-angle lens |
| Night Vision | Up to 16 feet (5 meters) with infrared |
| Battery | 4,600 mAh rechargeable lithium-ion (up to 90 days standby) |
| Power | 5 Volts DC, 2.2 watts |
| Storage | MicroSD card (up to 512 GB, sold separately) or EZVIZ CloudPlay |
| Special Features | Motion detection with human recognition, two-way video, voice modifier, PIR motion sensing |
| Compatibility | Alexa, Google Assistant, IFTTT |
| Installation Requirements | Peephole: 14–50 mm, Door Thickness: 35–105 mm |
| Warranty | 1 year |
The CP4 is designed to be sturdy, resistant to tampering, and stylish, making it suitable for apartments, houses, or any home with a compatible door.
Key Features
1. 4.3-Inch Color Touch Screen
The indoor monitor features a vibrant, user-friendly 4.3-inch touch screen that’s easy to navigate for all ages, including children and the elderly. You can view live footage by pressing the home button or set the screen to activate automatically when motion is detected.
2. 166° Ultra-Wide-Angle View
With a 166° field of view, the CP4 captures nearly everything in front of your door, minimizing blind spots. The 1080p resolution ensures clear, detailed footage, day or night.
3. Motion Detection with Human Recognition
The CP4 uses PIR motion sensing combined with a human recognition algorithm to reduce unnecessary alerts from non-human movements, such as passing vehicles or animals. You can adjust sensitivity levels to suit your environment, whether in a busy urban area or a quiet suburb.
4. Two-Way Video Communication with Voice Modifier
When someone presses the doorbell, you receive a real-time video call on your phone via the EZVIZ app. You can communicate with visitors remotely, and a built-in voice modifier allows you to maintain privacy if desired.
5. Night Vision Up to 16 Feet
The CP4’s infrared night vision provides clear visibility up to 5 meters, automatically switching between day and night modes for round-the-clock monitoring.
6. Long-Lasting Battery Life
Equipped with a 4,600 mAh rechargeable lithium battery, the CP4 offers up to 90 days of standby time based on 5 minutes of daily use. Battery life may vary with frequent usage, with some users needing to recharge every two weeks under heavy use.
7. Flexible Storage Options
Store footage locally on a MicroSD card (up to 512 GB with firmware version V5.3.3 or higher; 256 GB for older versions) or opt for EZVIZ CloudPlay for encrypted cloud storage. A local storage card ensures data accessibility even if the outdoor camera is compromised.
8. Tamper-Resistant Design
The exterior camera features an anti-tampering design, enhancing privacy and safety. The zinc alloy construction is both durable and visually appealing.
9. Multiple Ringtones
Choose from up to five ringtones with adjustable volume to personalize your doorbell experience.
How to Use the EZVIZ CP4
Setup Process
- Check Compatibility: Ensure your door’s peephole diameter is 14–50 mm and the door thickness is 35–105 mm.
- Install the Camera:
- Remove the existing peephole (may require a screwdriver or drill for some doors).
- Insert the CP4 camera unit from the outside and secure it with the mounting base and screws provided.
- Connect the camera to the indoor touch screen via the provided ribbon cable (USB-C or Micro USB, depending on the model).
- Mount the Indoor Panel: Attach the indoor monitor to the mounting base inside your door.
- Connect to Wi-Fi: Download the EZVIZ app, create an account, and connect the CP4 to your 2.4 GHz Wi-Fi network. Note that 5 GHz Wi-Fi is not supported.
- Add to EZVIZ Account: Follow the app’s prompts to add the device and configure settings like motion detection sensitivity and ringtone preferences.
Using the Device
- Live View: Access live footage via the indoor touch screen or the EZVIZ app.
- Respond to Visitors: When the doorbell is pressed, answer via the app or touch screen. Use the voice modifier for added privacy.
- Review Footage: Check recorded videos on the MicroSD card or cloud storage (if subscribed).
- Adjust Settings: Customize motion detection, ringtone, and other features through the app.
For optimal performance, disable image encryption in the EZVIZ app if using Alexa, as it cannot read encrypted video streams. Avoid continuous charging, as heat generated during charging may affect the PIR sensor.
What’s in the Box
The EZVIZ CP4 comes as a combo set, including:
- 1 x CP4 Peephole Doorbell Camera
- 1 x 4.3-Inch Touch Screen Monitor
- 1 x Mounting Base
- 1 x Buckle
- 6 x Screws
- 1 x Power Cable (Micro USB or USB-C, depending on the model)
- 1 x Regulatory Information
- 1 x Quick Start Guide
Note: A MicroSD card for local storage is not included and must be purchased separately.
Frequently Asked Questions (FAQ)
1. What is the battery life of the EZVIZ CP4?
The CP4’s 4,600 mAh battery lasts up to 90 days with 5 minutes of daily use under standard conditions. Heavy usage may require recharging every two weeks.
2. Does the CP4 support 5 GHz Wi-Fi?
No, the CP4 only supports 2.4 GHz Wi-Fi. Ensure you select the correct network during setup.
3. What storage options are available?
You can use a MicroSD card (up to 512 GB with firmware V5.3.3 or higher; 256 GB for older versions) or subscribe to EZVIZ CloudPlay for cloud storage. Cloud availability varies by market.
4. Is the CP4 compatible with smart home systems?
Yes, it works with Alexa, Google Assistant, and IFTTT. Disable image encryption for Alexa compatibility.
5. How easy is the installation?
Installation is straightforward and typically takes 15–30 minutes. It requires no wiring, but you may need a drill to enlarge the peephole channel for some doors.
6. What are the differences between the Micro USB and USB-C versions?
The older CP4 model uses a Micro USB cable for charging, while the newer version uses USB-C. Check product details before purchasing.
7. Can I share live video with others?
Yes, you can share live video via the EZVIZ app’s “Share” button.
8. Does the CP4 record continuously?
No, it records based on motion detection or doorbell triggers to conserve battery and storage. There may be a slight recording delay, as noted by some users.
Pros and Cons
| Pros | Cons |
|---|---|
|
|
Conclusion
The EZVIZ Smart Peephole Doorbell Camera (CP4) is an excellent choice for those seeking a wire-free, feature-rich solution for front-door monitoring. Its 4.3-inch touch screen, 166° wide-angle view, and motion detection with human recognition make it both convenient and dependable. While it has minor limitations, such as the lack of 5 GHz Wi-Fi support and potential recording delays, the CP4’s ease of use, long battery life, and robust build quality make it a standout in the smart doorbell market.
Whether you live in an apartment or a house, the CP4 offers peace of mind with its real-time alerts, two-way communication, and night vision capabilities. If you’re looking to enhance your home’s safety without complex installation, the EZVIZ CP4 is a strong contender.
Disclaimer: Some features, such as cloud storage, may not be available in all regions. Always verify compatibility and product details before purchasing.
