SMTAV PTZ Camera with 3G-SDI 30X Optical Zoom HDMI and IP Streaming Outputs Broadcast Live Streaming Camera for Conference,Events,Church and School

Apply Panasonic's 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 30x + 8X Zoom.The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well.

About SMTAV

SMTAV Corporation is a professional AV integration and conference solution supplier. It has been providing the high-quality video and audio products for more than 20 countries worldwide. Committed to provide and support you with the good and cost-effective products.

At present, while supplying high-quality audio and video products to many Fortune 500 companies, it has also helped many brands manufacture PTZ cameras and microphones belonging to their brands.

BA30L is a PTZ camera for professional live broadcasting. It basically has features you can imagine, including but not limited to multiple resolutions, multiple frame numbers and multiple output methods (SDI&HDMI&IP), H.265&H.264&MJPEG video encoding, RTSP&RTMP, and multiple control methods (Onvif/VISCA/ Pelco-D/Pelco-P/CGI/HTTP, etc.), PoE, local recording and so on. It can make video creation fun and simple.

Camera Interface

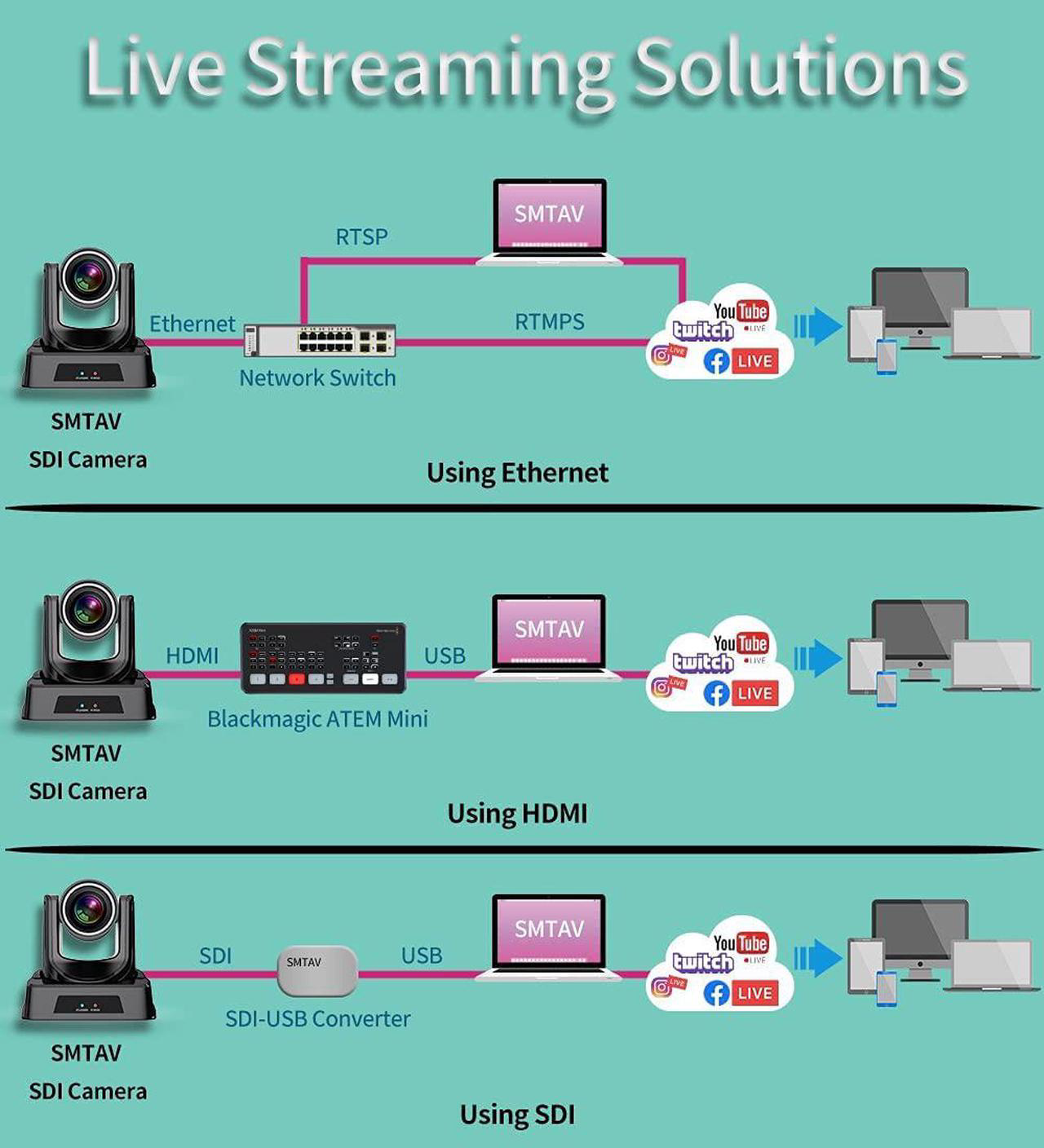

Supports 3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.Support TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Features of broadcast frame rates, create more artistic possibilities.So,it is a ideal use for Live Streaming,Conference,Church,Teaching,Esports,Fitness Classes and Cooking demonstrations and more.

Picture Quality First

We have always believed that the soul of a camera is the most basic image quality, so we have been committed to optimizing image quality.

It is equipped with a Panasonic 1/2.7" CMOS and a Tamron zoom lens with a maximum aperture of F1.8, combined with our unique image processing algorithm and focus processing algorithm, so that it can easily cope with a variety of scenes. Whether it is a football competitions under night lights, press conferences under the spotlight or a party under the sun.
MAIN SPECIFICATIONS

Video Output Interface 3G-SDI, HDMI, CVBS, IP(RJ45)

Video Format HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 S

Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M (Panasonic)

Lens(30x zoom) 30x,f4.42mm~132.6mm,F1.8~F2.8 (Tamron)

Lens(20x zoom) 20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8 (Tamron)

Focus Mode Auto, Manual

Electronic Shutter 1/30s ~ 1/10000s

Minimum Illumination 0.5 Lux at F1.8, AGC ON

Backlight Compensation Support

Digital Noise Reduction 2D&3D Digital Noise Reduction

H & V Flip Support

Image Freeze Support

Video Compression H.265/H.264/MJEPG

PoE Support(802.3af)

Local Storage Support(Flash disk via USB, FAT32 format, Up to 128GB)

Control Signal Interface 1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN), RJ45(IP Control)
